Meade Lightbridge 10" / 12" / 16"

Collimate a LightBridge telescope's primary mirror using a triple-control hand unit at the eyepiece.  The hand unit has three momentary switches which control three electric motors.  Each motor controls the in/out movement of one of the three collimation bolts.  Heavy springs replace the standard locking screws on each bolt.  The ColliMotor works with your favorite collimating tools and methods.

NOTE	The ColliMotor is not compatible with the 8" LightBridge.

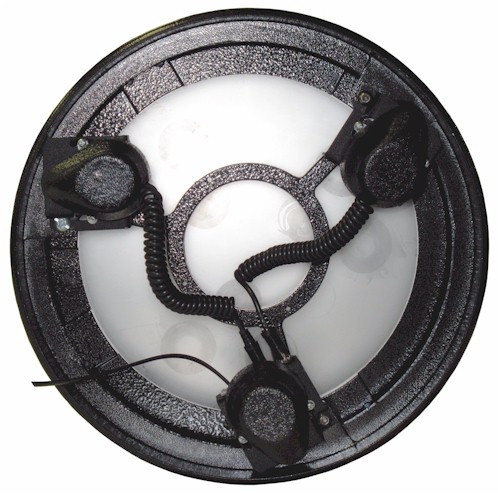

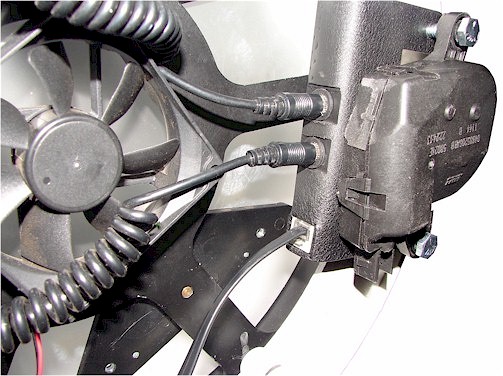

	This picture shows the power cable connected to the first motor and two additional coiled cords that pass power to the other two motors.

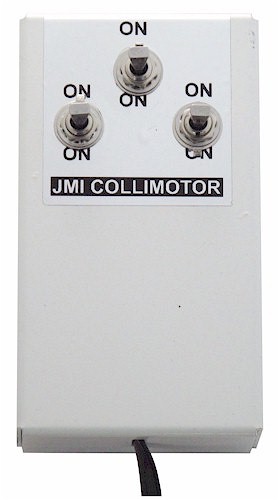

	ColliMotor Hand Unit



Orion SkyQuest XT10 / XT12

Collimate an Orion SkyQuest XT10 telescope's primary mirror using a triple-control hand unit at the eyepiece.  The hand unit has three momentary switches which control three electric motors.  Each motor controls the in/out movement of one of the three collimation bolts.  The ColliMotor works with your favorite collimating tools and methods.

ColliMotor Hand Unit
