Backup Plate

For adding support when mounting JMI EV, NGF (1.25" and 2") or RCF focusers on Sonotube (cardboard) or wooden optical tubes.  (Will not work with the EV-75 Upgrade.)  The plates can be easily curved or flattened as needed.

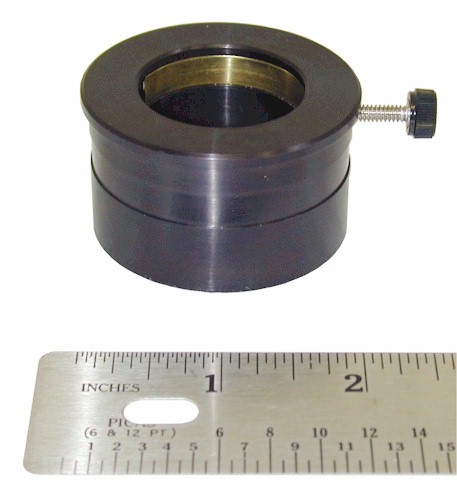

1.25" Eyepiece Adapter

Adapter for inserting 1.25" accessories in a 2" drawtube.  The adapter uses a compression ring to secure inserted equipment.  It includes standard 48mm filter threads.  (This adapter is a standard accessory with EV-1n, EV-2n and Ev-3n focusers.)  See the SCT Accessories Diagram and the Adapter Comparison Chart.

Our 1.25" Eyepiece Adapter (shown), T-thread Adapter and Enhanced Extension Tubes include a compression ring for holding eyepieces and accessories without scratching the equipment.  The adjusting screw presses against the ring which tightens around the eyepiece or accessory.

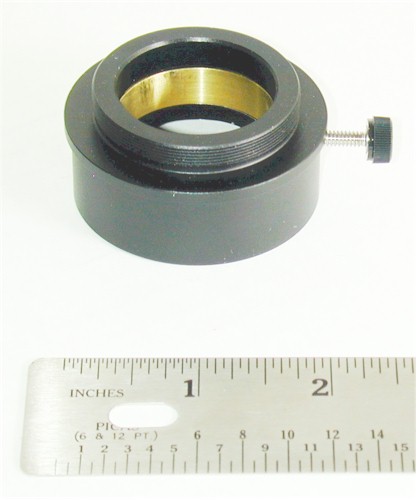

Combination 1.25" Eyepiece and T-Thread Adapter

Adapter for mounting a CCD or other camera, with a standard T-thread, into a 2" drawtube.  It also doubles as a 1.25" adapter.  A T-adapter holds a CCD camera more securely than a standard 1.25" adapter.  The adapter uses a compression ring to secure inserted equipment.  It includes standard 48mm filter threads.  See the SCT Accessories Diagram and the Adapter Comparison Chart.

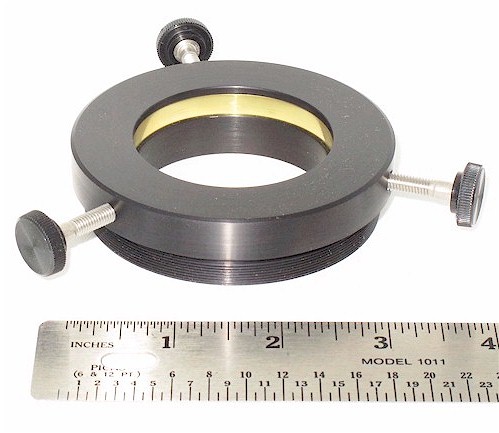

2" Eyepiece Adapter

Adapter for inserting 2" accessories in a 3" drawtube.  The adapter uses a compression ring to secure inserted equipment.  (This adapter is a standard accessory with NGF-XT focusers.)  See the SCT Accessories Diagram and the Adapter Comparison Chart.

Extension Tubes

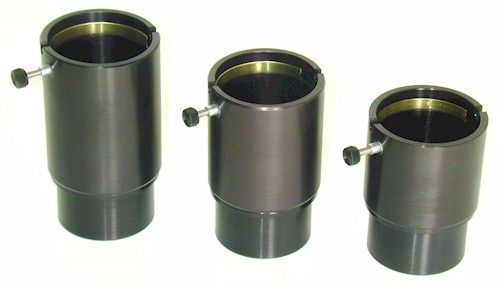

Enhanced extension tubes include a compression ring and 48mm filter threads.  See the Adapter Comparison Chart.

2" diameter x 2.13" height
2" diameter x 2.63" height
2" diameter x 3.13" height

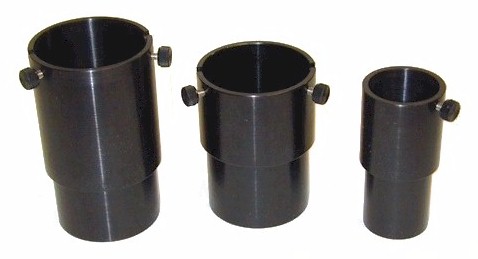

Standard extension tubes do not include a compression ring or filter threads.  See the Adapter Comparison Chart.

1.25" diameter x 1.6" height
2" diameter x 1.5" height
2" diameter x 2.5" height

NOTE

Since JMI focusers are low profile, you may need extension tubes to reach focus after converting from a high profile focuser (longer drawtubes are also available) or to alternate between visual and photographic positions. Enhanced Extension Tubes come in three sizes.  All three are for 2" drawtubes and include a compression ring (see below) and filter threads.  The extension lengths are 2.13", 2.63" and 3.13". Standard Extension tubes come in three sizes.  Two for 2" diameter drawtubes and one for 1.25" drawtubes.

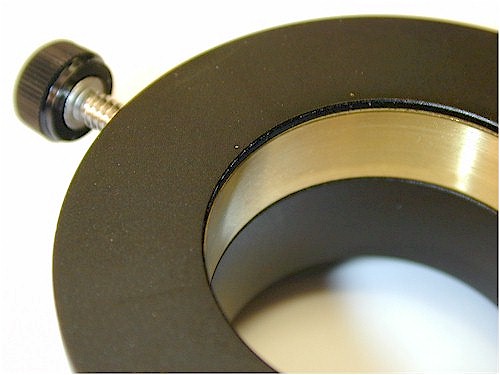

The Enhanced Extension Tubes include a compression ring for holding eyepieces and accessories without scratching the equipment.  The adjusting screw presses against the ring which tightens around the eyepiece or accessory.

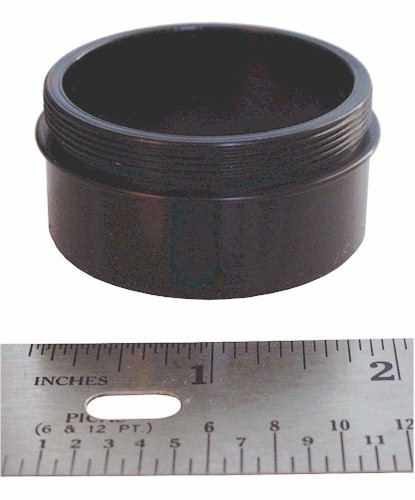

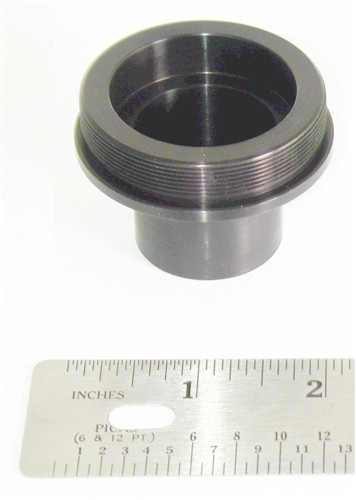

SCT Threaded Output Adapter—1.25"

Standard SCT threaded output for inserting into a 1.25" drawtube.  This adapter duplicates the standard 2" diameter threads found on a small SCT allowing standard SCT accessories to be attached to the output of any 1.25" focuser.  (This adapter is a standard accessory with NGF-miniC and NGF-miniCM focusers)  See the SCT Accessories Diagram and the Adapter Comparison Chart.

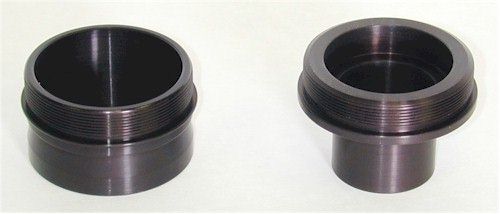

These adapters give output of standard SCT threads.   The first fits into a 2" drawtube and the second fits into a 1.25" drawtube.  This adapter allows attachment of standard SCT accessories on the output side of a focuser.  With this adapter you could even mount a JMI focuser on the back of a refractor.

SCT Threaded Output Adapter—2"

Standard SCT threaded output for inserting into a 2" drawtube.  This adapter duplicates the standard 2" diameter threads found on a small SCT allowing standard SCT accessories to be attached to the output of any 2" focuser.  (This adapter is a standard accessory with EV-1c, EV-2c and EV-3c focusers).  See the SCT Accessories Diagram, the Adapter Comparison Chart and the Refractor Diagram.

These adapters give output of standard SCT threads.   The first fits into a 2" drawtube and the second fits into a 1.25" drawtube.  This adapter allows attachment of standard SCT accessories on the output side of a focuser.  With this adapter you could even mount a JMI focuser on the back of a refractor.

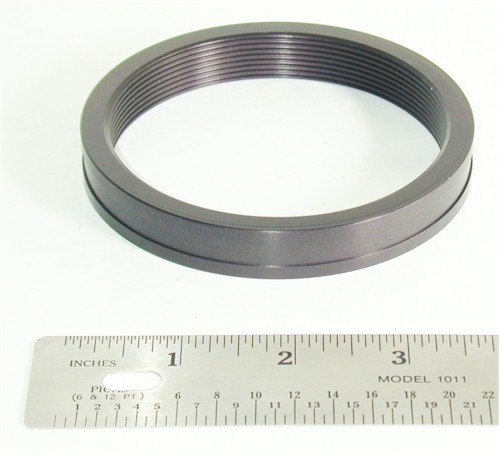

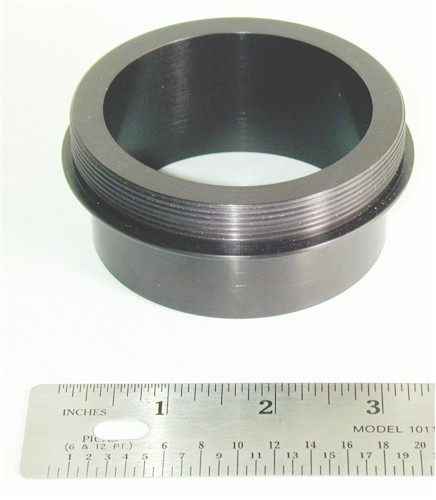

SCT Threaded Output Adapter—3"

Large format SCT threaded output for inserting into a 3" drawtube.  This adapter duplicates the large 3.25" diameter threads found on a large SCT allowing large format SCT accessories to be attached to the output of any 3" focuser.  (This adapter is a standard accessory with an NGF-XTc focuser).  See the SCT Accessories Diagram and the Adapter Comparison Chart.

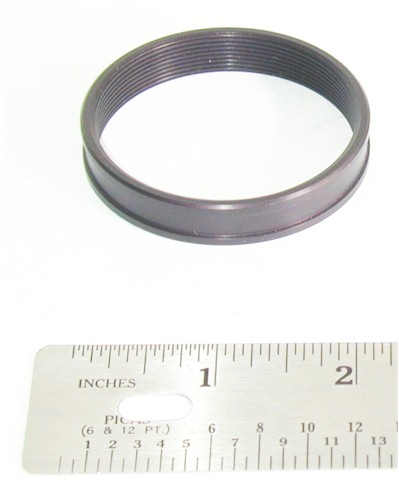

SCT Visual Back Adapter

Adapter for mounting older 2" NGF focusers (NGF-C, NGF-CM, NGF-S, NGF-SE) and current and older 1.25" NGF focusers (NGF-miniC, NGF-miniCM and NGF-miniS) on an SCT with standard 2" diameter threads.  (This adapter is a standard accessory with an NGF-miniC focuser.)  See the SCT Accessories Diagram and the Adapter Comparison Chart.

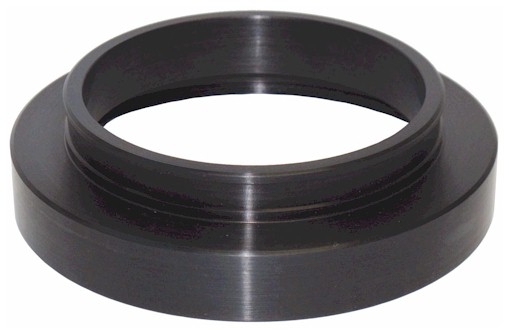

Large Format SCT Visual Back Adapters for NGF-XTc

Non-vignetting adapters for mounting an NGF-XTc focuser on a 10" to 14" SCT with 3.25" diameter threads or 16" SCT with 4" diameter threads.  (The 3.25" adapter is a standard accessory with an NGF-XTc focuser)  See the SCT Accessories Diagram and the Adapter Comparison Chart.

3.25" diameter threads

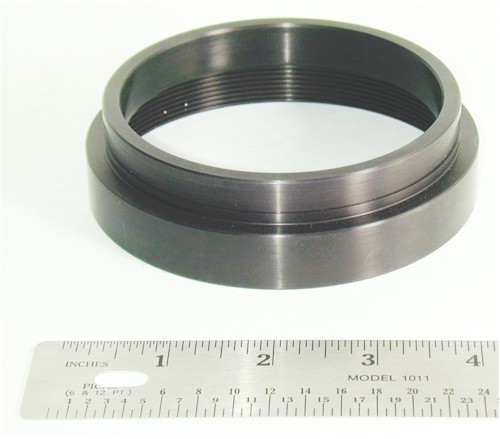

4" diameter threads

Focuser Hardware Pack

When purchasing a new focuser, all necessary hardware is included.  This hardware pack is intended as a source of replacement or extra parts.   It includes the following hardware for EV, NGF and RCF focusers:

(2) 4-40 x 1/4" setscrews
(2) 6-32 x 1/8" setscrews
(2) 6-32 x 1/4" setscrews
(2) 8-32 x 1/4" setscrews
(2) 10-32 x 1/8" setscrews
(2) 10-32 x 3/8" setscrews
(2) 10-32 x 1/4" setscrews

(1) 0.050" hex wrench
(1) 1/16" hex wrench
(1) 5/64" hex wrench
(1) 3/32" hex wrench

(1) 6-32 x 1/4" metal drawtube thumbscrew with plastic cap
(4) 6-32 x 5/8" metal drawtube thumbscrews with plastic cap
(1) 6-32 x 3/4" metal adapter thumbscrew with plastic cap
NOTE:  Does NOT include 4-40 thumbscrews for pre-1997 NGF models.

(1) 6-32 x 1/4" nylon drawtube thumbscrew
(3) 6-32 x 3/4" nylon drawtube/adapter thumbscrews
(1) 10-32 x 1/2" nylon photographic-lock thumbscrew
(1) 1/4-20 x 3/4" nylon photographic-lock thumbscrew

Motor for JMI EV Focusers

JMI EV-1, EV-2, EV-3, EV-B

Motors for JMI NGF Focusers

JMI NGF-1 / -2 / -3 / -4, NGF-55D / -55S, NGF-C, NGF-DX1 / -DX2 / -DX3 / -DX4, NGF-SE, NGF-mini1 / -mini2 / -mini3 / -mini4, NGF-miniC

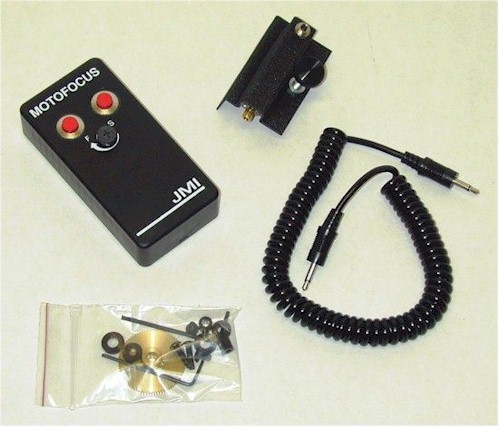

This is an aftermarket motor for upgrading a manual NGF focuser to a motorized focuser.  It includes the motor and any necessary mounting hardware as well as a hand control unit.

* In some cases, you will need to return the focuser to the factory for modifications.  Additional charges may apply for parts and/or labor.  (For more specific information, please review the notes below.)  For all NGF focusers we need to have certain information in order to supply the correct parts.  When ordering, please place a note in the shopping cart Comments area identifying the specific focuser model and purchase date.  A digital picture is "worth a thousand words" in describing the specific model.  If you email a picture, please give us your Order ID along with your Name.  If we need more information, we will contact you.

NGF-XTc / -XTn,  Part Number MFNGFXT
NGF-C, NGF-55D manufactured after 2003, Part Number MFNGFC
NGF-SE, NGF-55S, NGF-55D manufactured before 2004, Part Number MFNGFS
NGF-DX1 / -DX2, Part Number MFNGFDX1
NGF-DX3 / -DX4, Part Number MFNGF
NGF-1 / -2 / -3 / -4, Part Number MFNGFO
NGF-mini1 / -mini2 / -mini3 / -mini4, Part Number MFNGFMIN

NOTE

In most cases you do not need to return the focuser for the upgrade.  If you have an original focuser (see DRONGFO list above), an NGF-SE focuser or a focuser manufactured before 1998, we recommend that the focuser be returned to JMI for the motor upgrade.  (All NGF-1 focusers must be returned for modifications to the base.)  With some focusers (generally those manufactured before 1998) we may not be able to provide the right parts without examining the focuser and there may be an extra charge for specialized parts and/or labor.  Normal labor charge for an upgrade is $20. If you place an order without returning the old focuser, we will need to know approximately when it was manufactured.  Damage done during installation by anyone other than factory trained technicians will void the warranty.  Please see our document titled JMI Return Policy for additional information. Please note:  The hand unit in the picture is an old version.

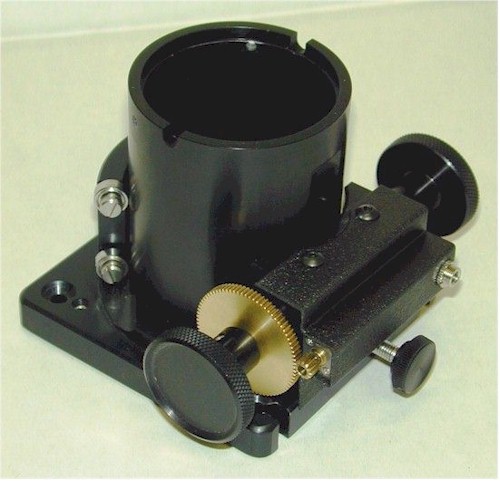

This picture shows a Motor Upgrade has been installed on an old NGF-1 focuser.

Motor for JMI RCF Focusers

JMI RCF-1, RCF-mini1

This is an aftermarket motor for upgrading a manual RCF focuser to a motorized focuser.  It includes the motor and any necessary mounting hardware as well as a hand control unit.

Please note:  The hand unit in the picture is an old version.
